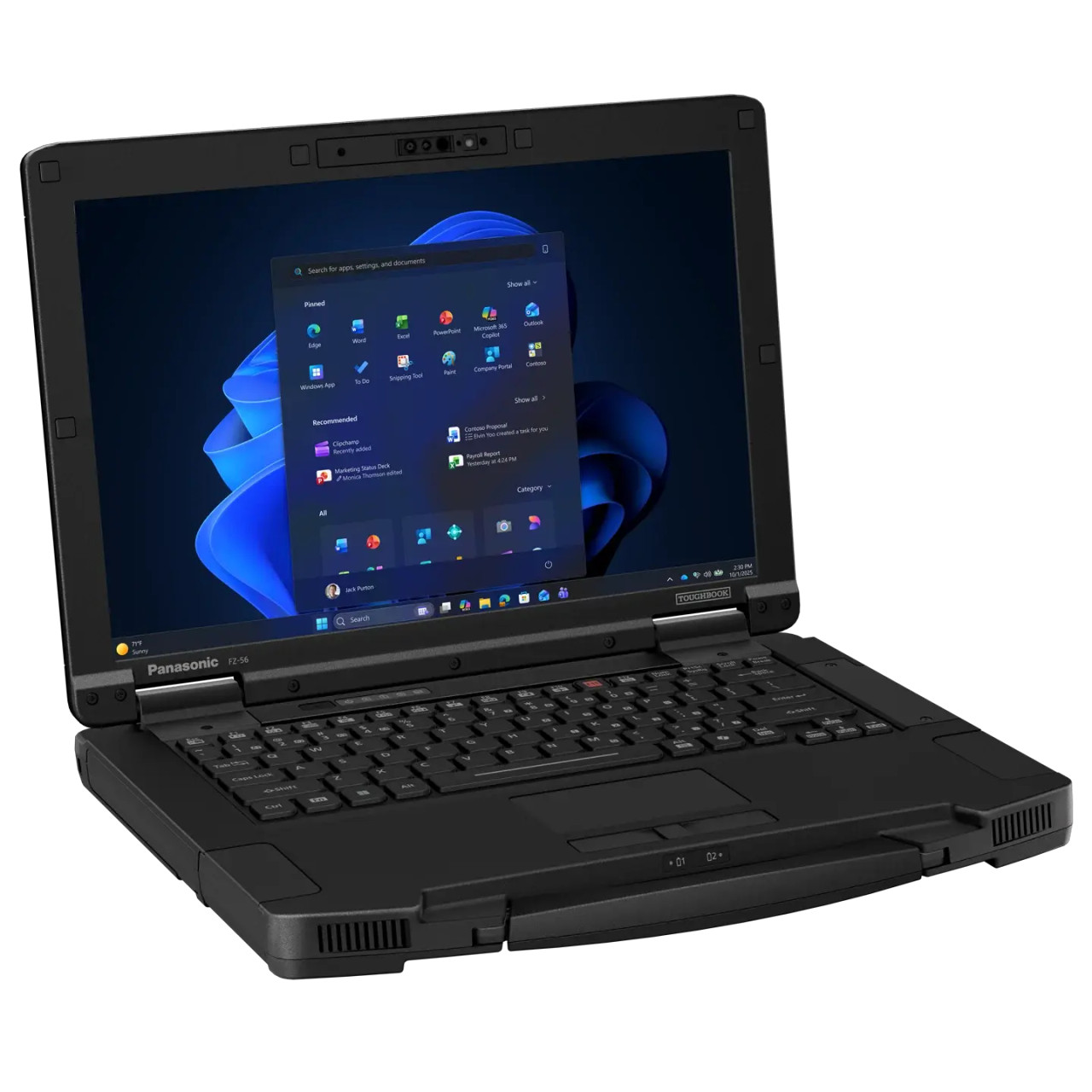

NEW TOUGHBOOK FZ-56 - Call for New Configurations and Pricing!

Panasonic

Contact our Solution Specialists for a Quote

(No reviews yet) Write a Review

SKU:
UPC:
Condition:: New
Availability:: This product is not available online. Please call 1-800-537-0509 to talk to a Sales representative.
Category:: Modular Rugged
Software:: Windows® 11 Pro, Red Hat Enterprise Linux 10.1 • Panasonic Utilities and Recovery Partition • Waves MaxxAudio® • COM Splitter Software • Enterprise ready driver packages including CAB files and one-click driver bundles
Rugged Testing:: MIL-STD-810H: 3’ drop, shock, bench handling, vibration, dust, sand, altitude, freeze/thaw, high/low temperature, temperature shock, solar radiation, contamination by fluids, fungus, humidity)
Durability:: IP53 • TAA-compliant • Magnesium alloy chassis with handle • Spill-resistant keyboard • User-removable xPAK's, RAM, battery and caged SSD (w/heater) • Raised bezel for LCD impact protection • Replaceable screen protector • Corning® Gorilla® Glass 3
CPU:: Intel® Core™ Ultra 5 vPro™ 235H w/AI Boost – Up to 5.0GHz, 18MB cache, 14 cores • Intel® Core™ Ultra 7 vPro™ 265H w/AI Boost – Up to 5.3GHz, 24MB cache, 16 cores
Hard Drive:: Main SSD: 512GB, 1TB or 2TB quick-release NVMe with heater; encrypted (OPAL or opt. FIPS 140-2) • Optional 2nd SSD: 512GB, 1TB or 2TB quick-release NVMe with heater; encrypted (OPAL or opt. FIPS 140-2)
Memory (RAM):: User-upgradeable RAM (up to 2 DIMM's) 16-64GB total (DDR5-5600MHz)
Display:: Display – 14.0" 16:10 WUXGA 1920 x 1200 (350 nit) – Opt. 14.0" 16:10 WUXGA 1920 x 1200 capacitive gloved touch (1000 nit) • IPS with direct bonding • Anti-glare (Anti-reflective on touch model)

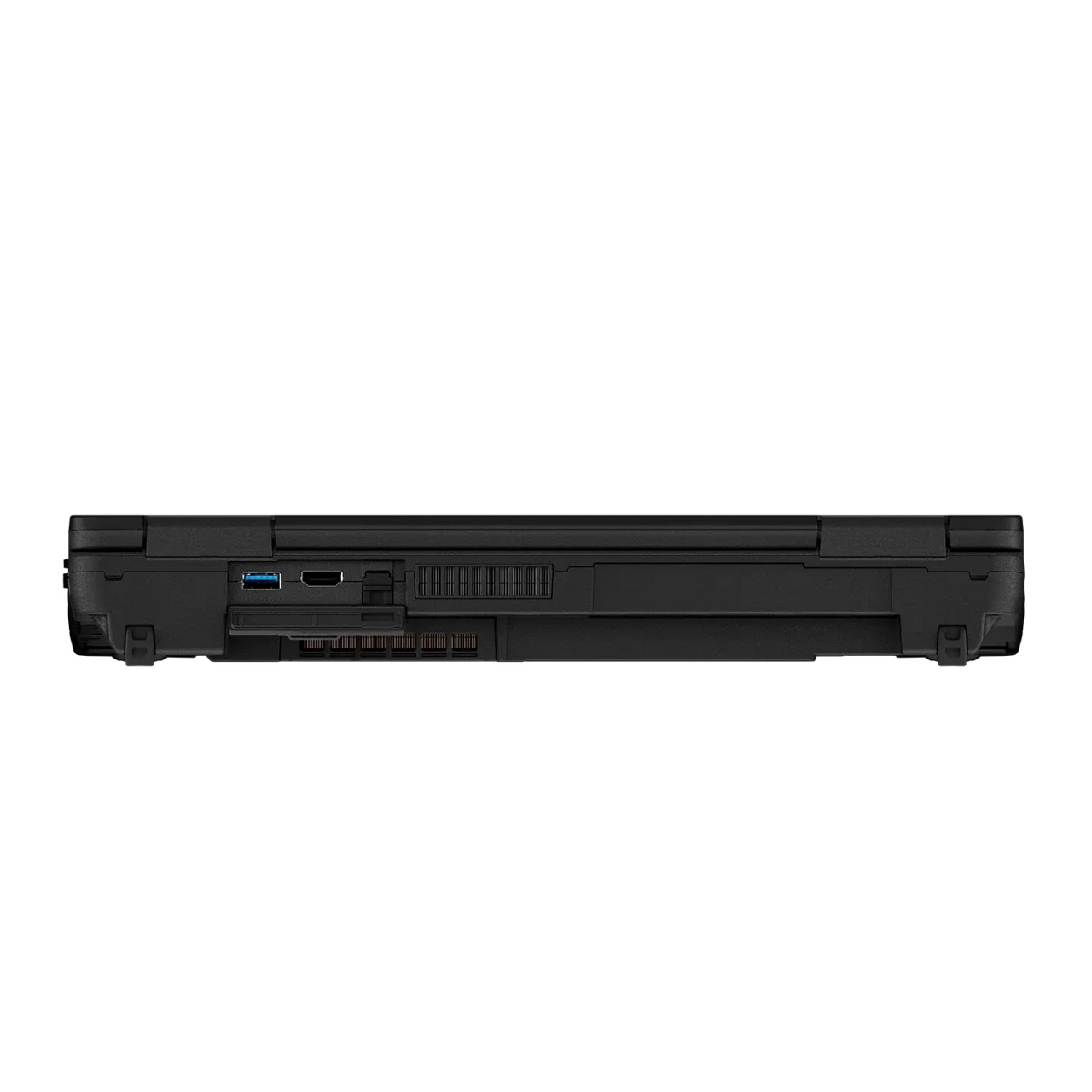

Graphics:: Graphics – Intel® Graphics (units with 1 DIMM) – Opt. Intel® Arc 140T GPU (units with 2 DIMM) – Opt. AMD™ Radeon PRO W7500M (8GB dGPU) • Supports up to 4 displays (including PC display) • Concealed Mode; Night Mode
Audio:: Integrated dual-array mic w/AI noise reduction • Waves MaxxAudio® • Integrated 98db speakers (front-facing) • Keyboard volume and mute controls
Webcam:: 5MP Infrared with Windows Hello support • Includes privacy cover & camera on LED

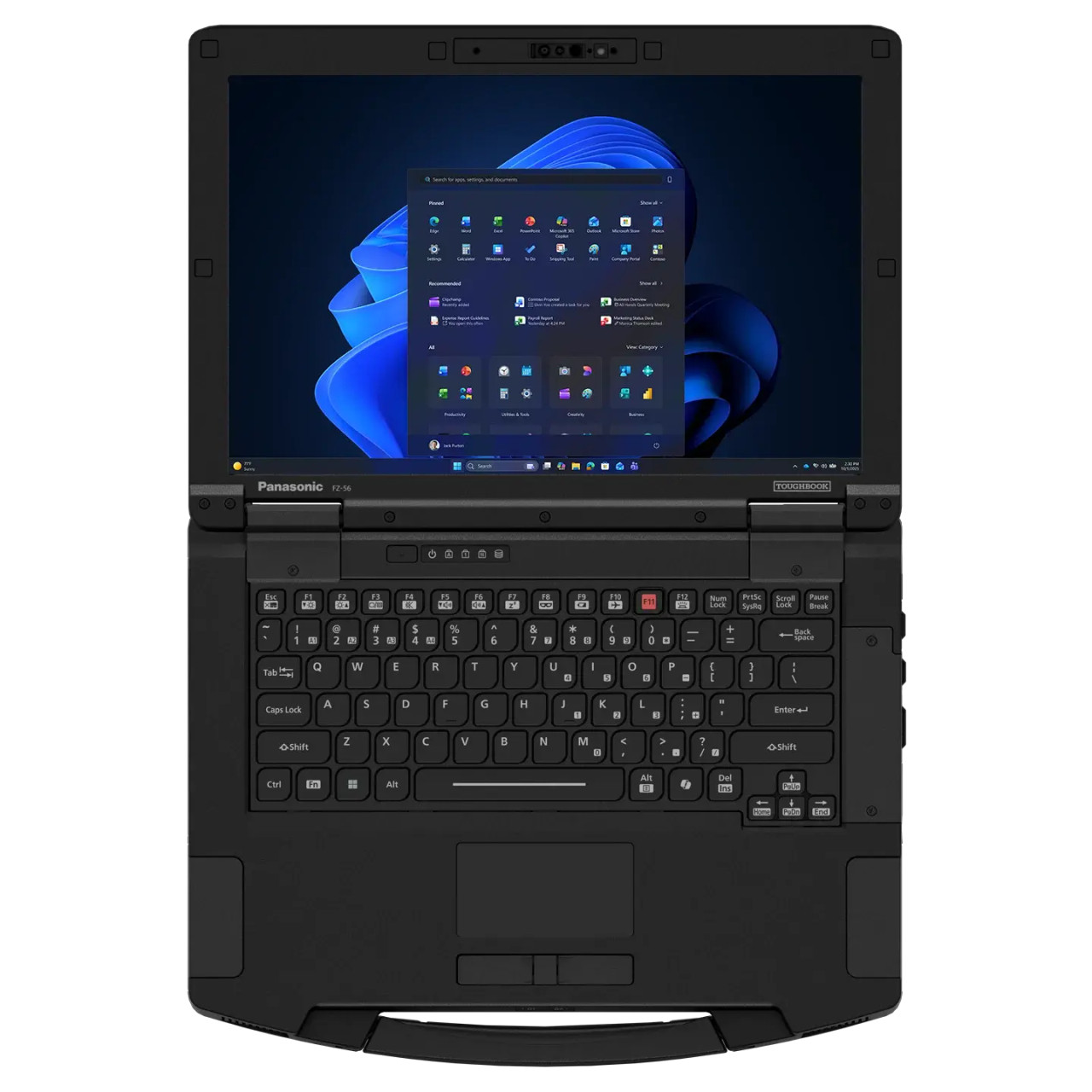

Keyboard:: Backlit keyboard icons (Power, Caps lock, Num Lock, Scroll Lock, Storage Drive) • 82-key emissive keyboard with Copilot Key – 4 programmable keys (A1-A4) – Color-selectable backlit with 4 adjustable levels

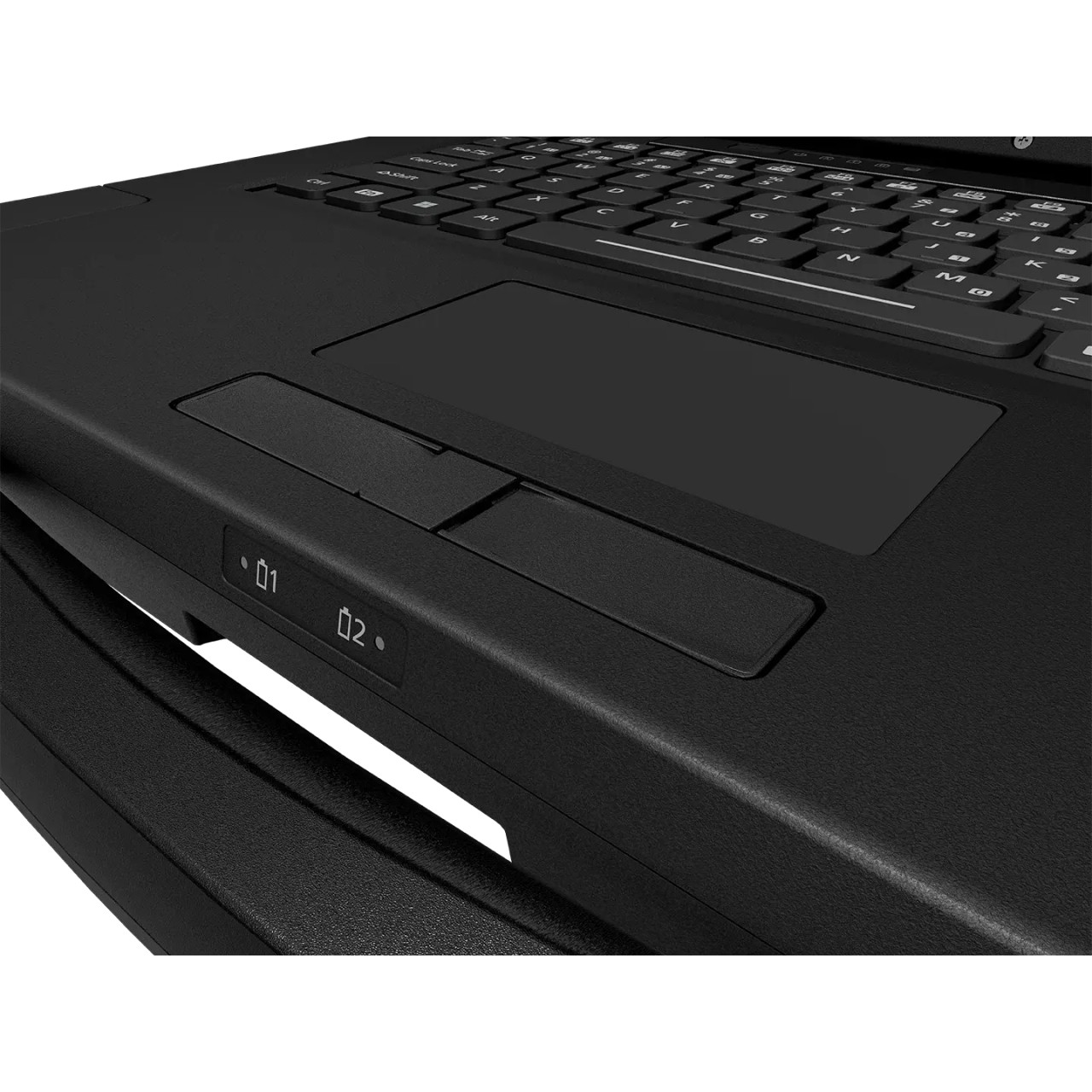

Input:: Touch model – Stylus holder w/opt. stylus pen & tether – 5 modes (auto, glove, touch, pen, pen/touch) • Electrostatic precision touchpad with multi touch

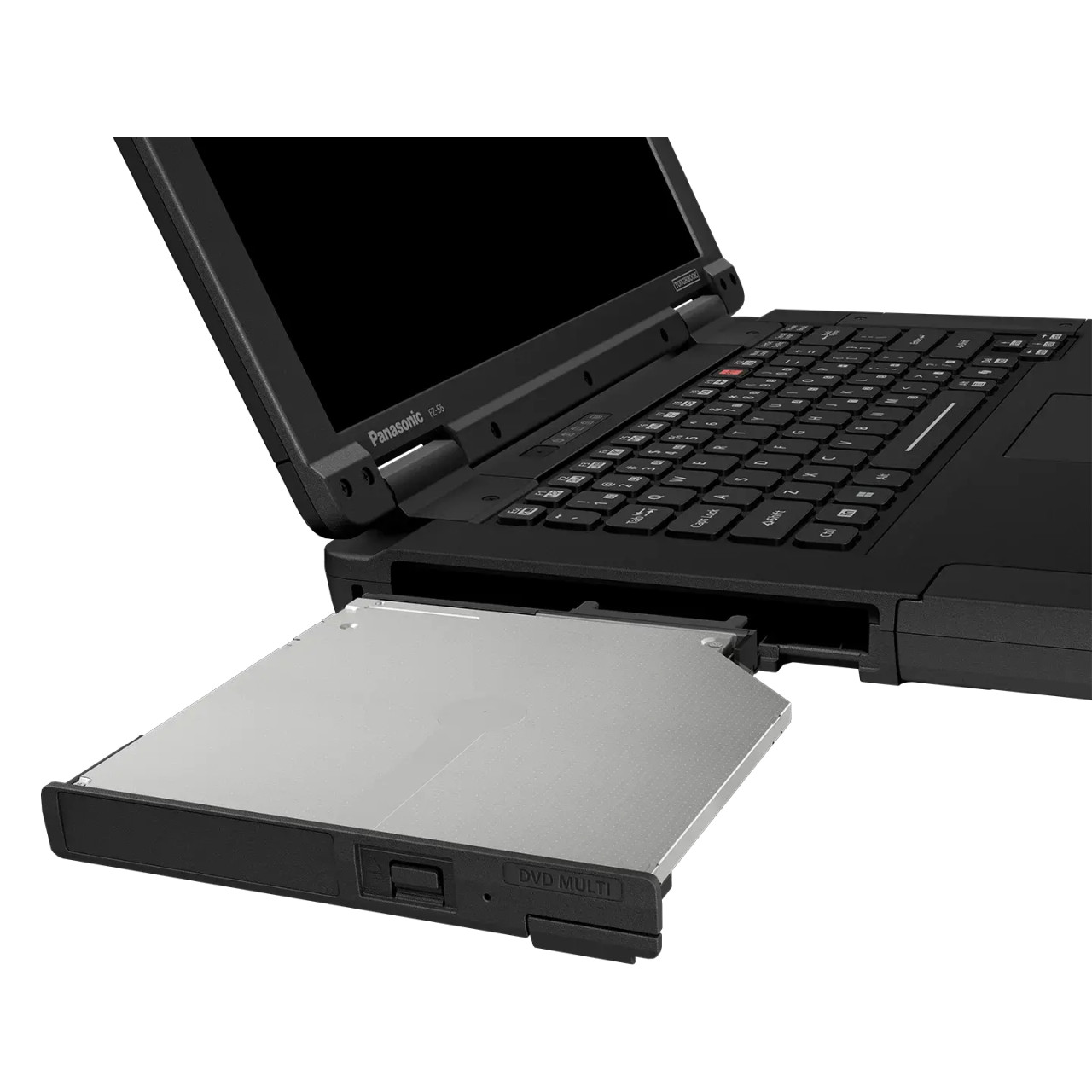

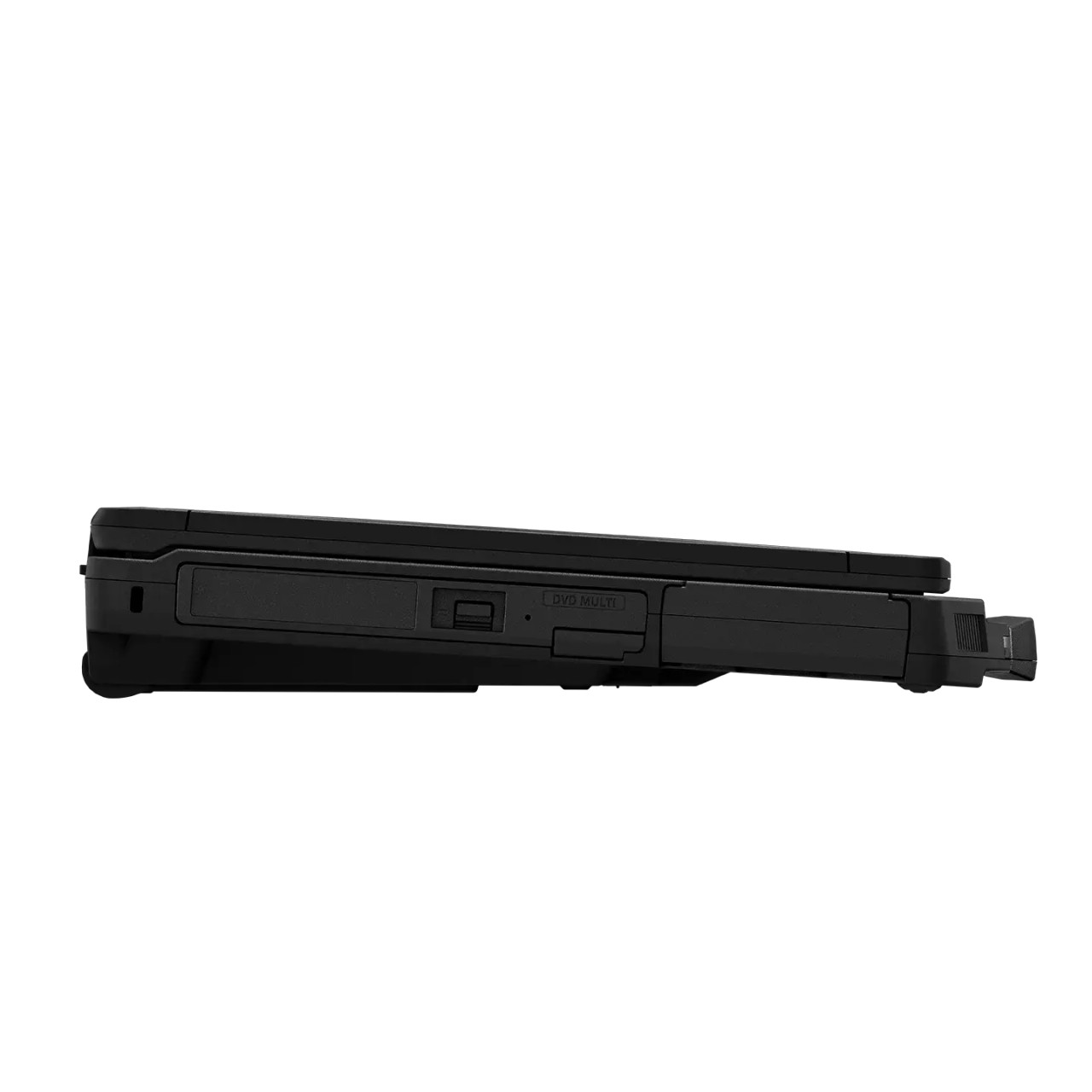

Optical Drive:: Optional Blu-ray Drive (xPAK) • Optional DVD Drive (xPAK)

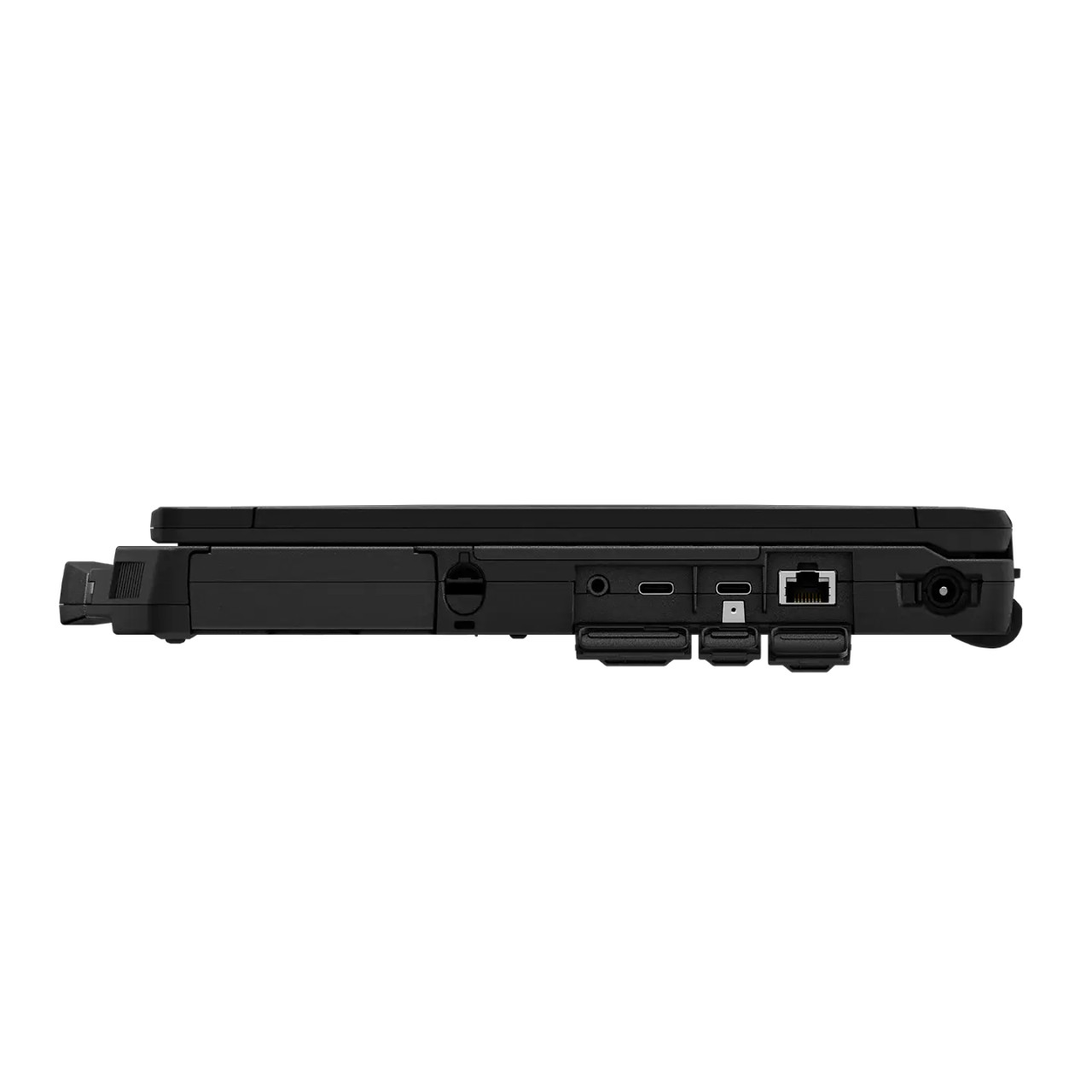

Interfaces:: USB-C Thunderbolt™ 4 x2 (40Gbps 3A, PD, DP) • Optional USB-C (5Gbps); Optional USB-A (5Gbps) • USB-A (5Gbps 0.9A) • Optional MicroSDXC UHS-I • HDMI 4K • Optional VGA
Interfaces Add'l:: Ethernet RJ-45 (1Gbps) • Optional 2nd Ethernet RJ-45 (1 or 2.5Gbps)6 • Optional 3rd Ethernet RJ-45 (10Gbps)5 • Optional Serial (True) D-sub 9-pin6 • Audio In/Out 3.5mm • Dual SIM (Nano-SIM 4FF x1, eSIM x1)

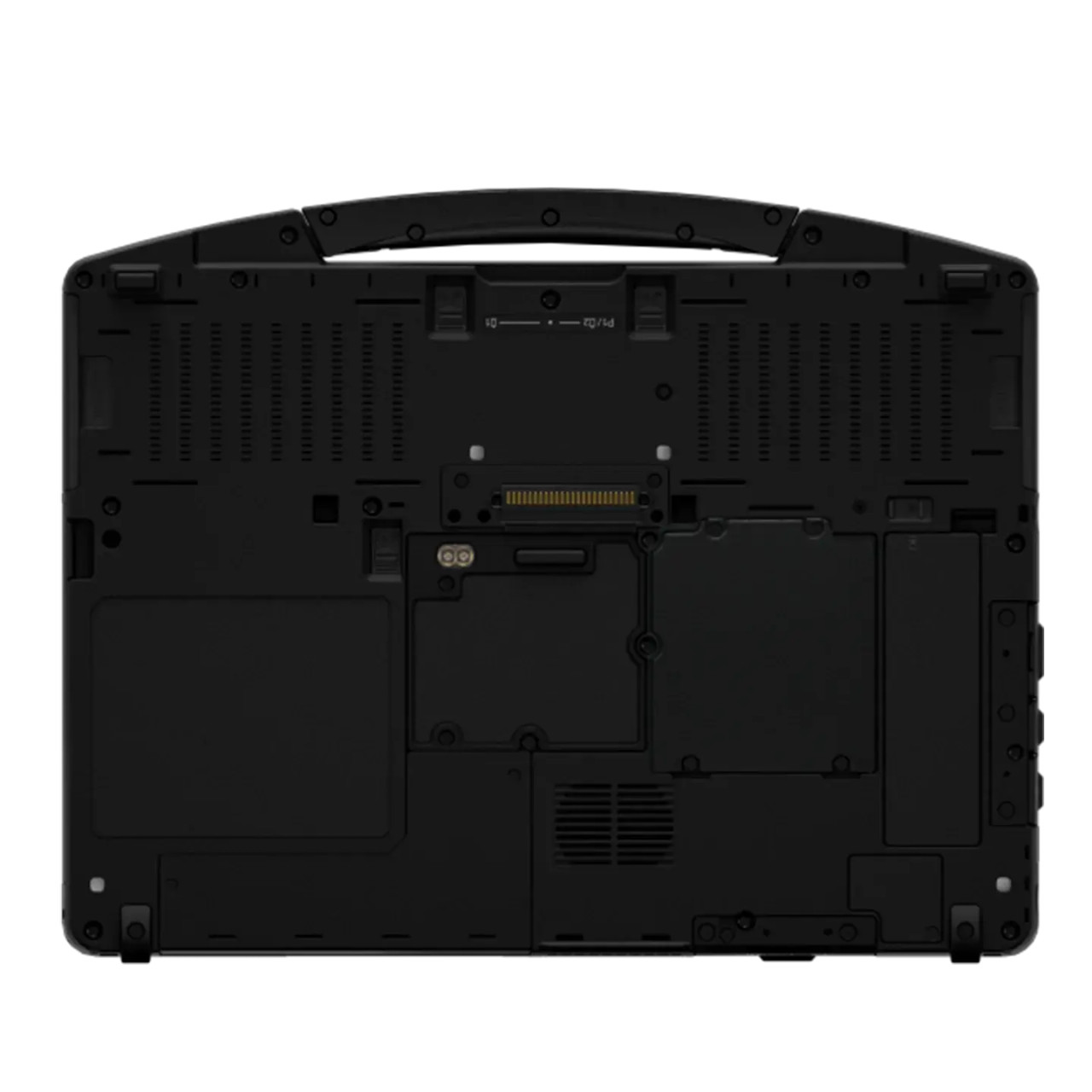

Wireless:: Optional dedicated GPS (u-blox NEO-M9N) • Opt. dual antenna pass-through (BIOS selectable) • Intel® Wi-Fi BE201 (up to 5.8Gbps) • Bluetooth® v5.4 (Class 1) • Airplane mode Fn key • COM Splitter Software
Cellular 4G:: Optional 4G EM7595 (up to 0.5Gbps) – 4G (LTE, LTE-A) – Multi carrier (AT&T, FirstNet, Verizon) – Satellite GPS & CBRS b48, b106 Capable
Cellular 5G:: Optional 5G EM9291 (up to 3.5Gbps) – 4G (LTE, LTE-A), 5G (Sub6, C-band) – Multi carrier (AT&T, First Net, T-Mobile, Verizon) – Satellite GPS & CBRS n48 Capable
Battery:: Li-Ion battery: – 12 hours (24 w/opt. 2nd battery) – 10.8V, 6500mAh typical (6300mAh min) • Hot swap with optional 2nd battery • Battery charging time: 3 hours (each battery) • TOUGHBOOK Smart Battery Technology
Power:: AC Adapter: AC 100V-240V worldwide power, auto sensing/switching
Security Features:: Intel® Hardware Shield • Secured-core PC • TPM v.2.0 • NIST BIOS compliant • Persistence® technology by Absolute in BIOS • Local Platform Erase • Kensington cable lock slot

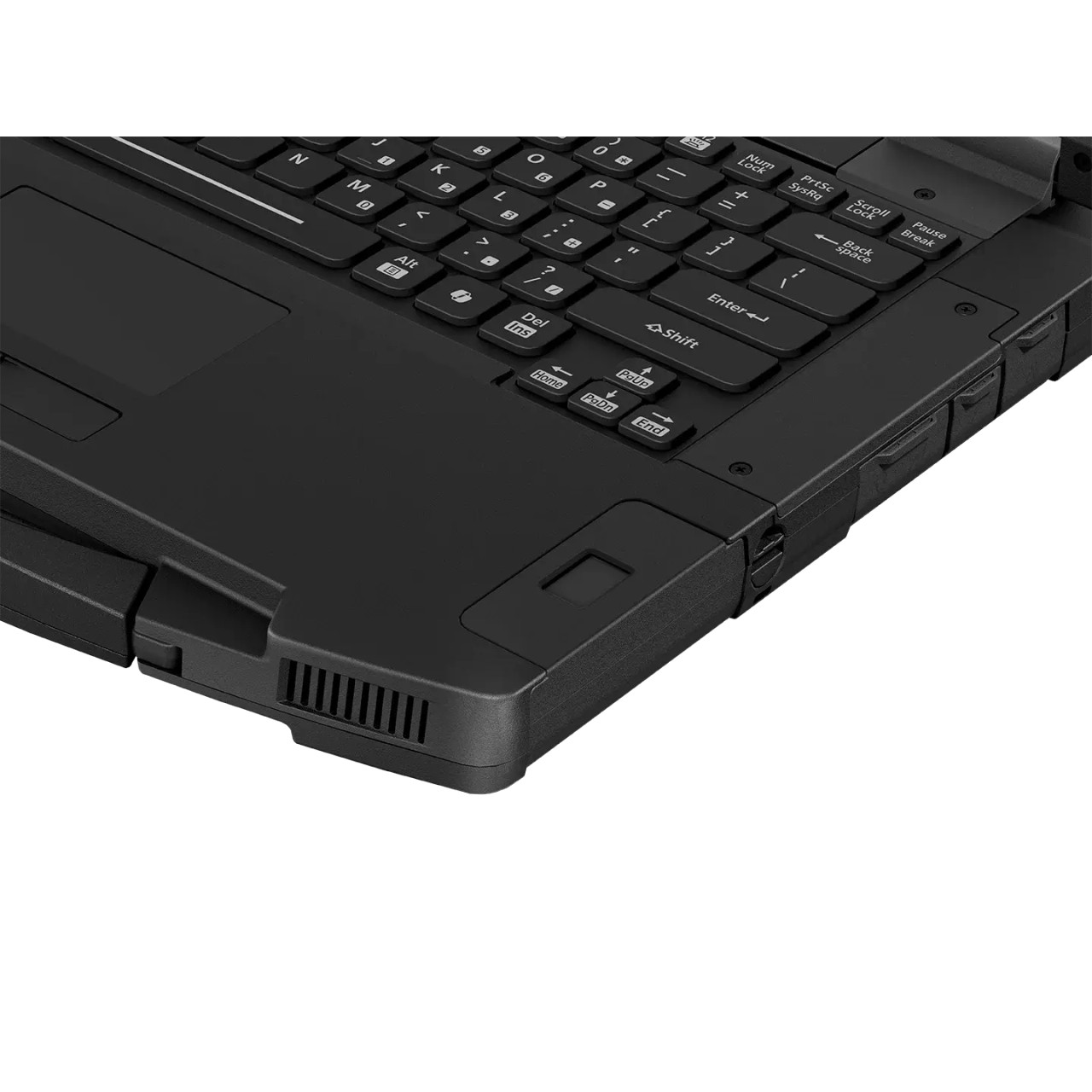

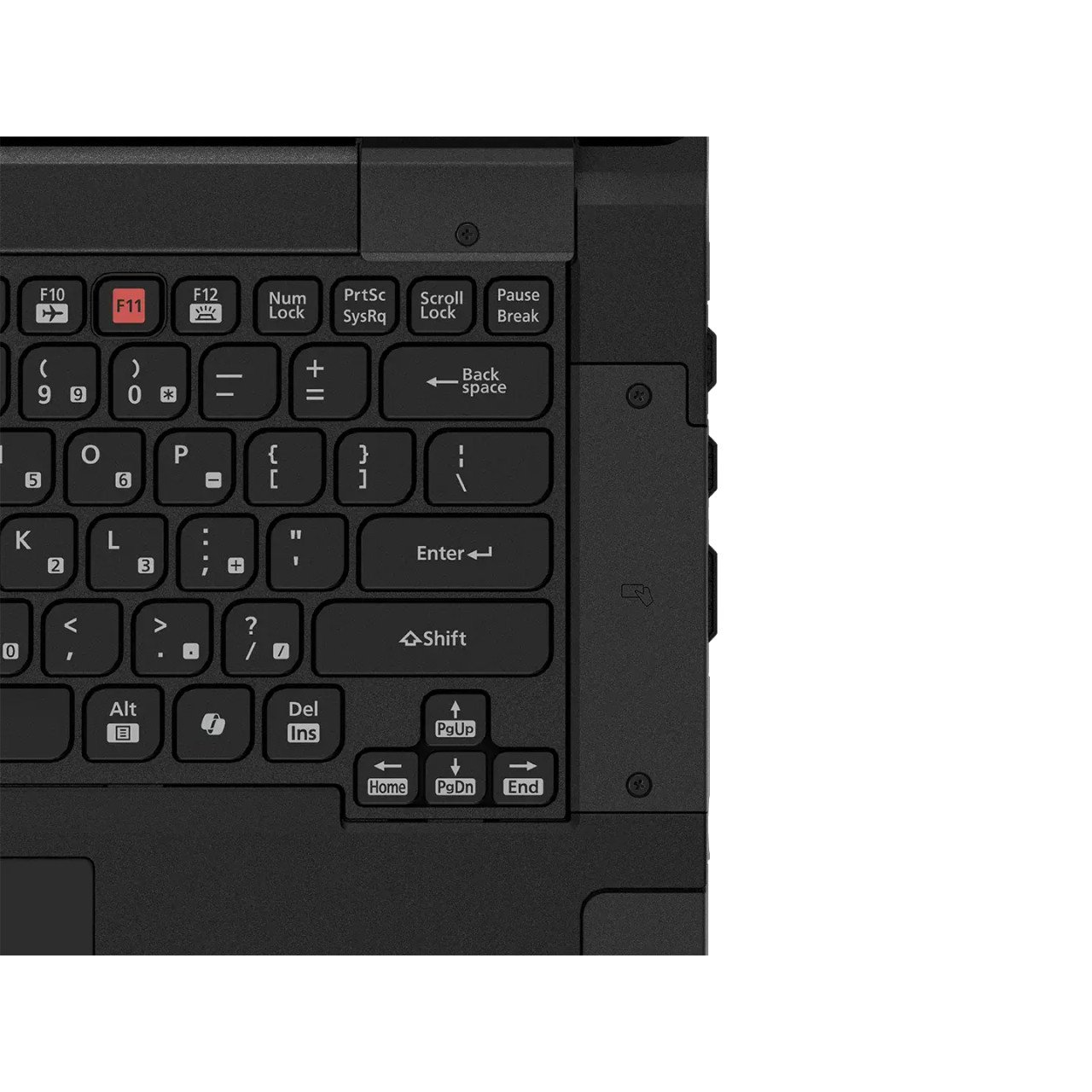

Security Features Add'l:: Encrypted SSD's (OPAL or opt. FIPS 140-2) • Optional locking screws for SSD and xPAK's • Optional fingerprint readers – Secured-core PC (363 DPI) – Active Directory (385 DPI) • Optional insertable Smart Card Readers • Optional contactless Smart Card
Dimensions & Weight:: 10.7"(L) x 13.6"(W) x 1.4"(H) • 4.66 lbs. (4.99 lbs. Touch model)
Warranty:: 3-year limited warranty, parts and labor
Disclaimer::: Pictures may very from actual product.

Current Stock:

Description

Key Features

TOUGHBOOK 56 Toughbook 56, FZ-56, Telrepco | 1-800-537-0509
The world’s most modular rugged PC with 6 user-replaceable areas and 5,760 combinations
First rugged PC available with a powerful 8GB dGPU for enhanced graphics and AI performance
Up to 3 Ethernet ports with speeds up to 10Gbps (industry firsts)
Optional 5G modem supports Sub, C-band, and speeds up to 3.5Gbps
Up to 24 hours of battery life
Over a decade of vehicle dock compatibility

Innovative Modular Design and All-Day Battery Life

The Panasonic TOUGHBOOK® 56 continues its tradition of breaking new ground offering unrivaled flexibility in even the most demanding and unpredictable environments with six modular areas, including its innovative modular expansion packs (xPAK's) which include optical drives, authentication readers, barcode readers, and IO ports including new 2.5 Gbps and 10 Gbps options – a rugged industry first.

Over a decade of backwards compatibility of docks protects customers’ investments while saving time and resources. Equipped with a powerful Intel Series 2 CPU that makes AI tasks a breeze, the TOUGHBOOK 56 is also the first rugged PC with a 8GB dGPU option which can help further boost graphics and AI tasks. It also is the first rugged PC with a FIPS encrypted SSD option, faster DDR5 memory, louder speakers, up to 24 hours of battery life (MobileMark 30) and faster seamless 5G modem option that also supports more wireless carriers. Its new 16:10 aspect ratio is designed for mission critical workers by fitting more rows of data without the need for scrolling
