PDRT

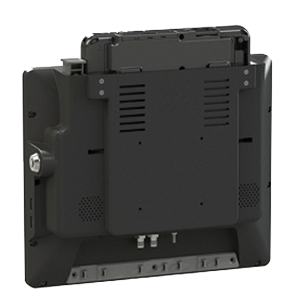

12.1” PDRT with FZ-M1 Mount

The PDRT© (Permanent Display Removable Toughpad) becomes the world’s first display with a built-in dock designed exclusively for the Panasonic FZ-M1 Toughpad. iKey’s new display allows for maximum versatility of the 7-inch FZ-M1 Toughpad, whether in the vehicle, or on-the-go.


This rugged monitor is a high-bright, daylight readable flat panel display with a two-point resistive touch screen, and integrated speakers. In addition, it features a standard VESA pattern for in-vehicle mounting.




  •    Brightness Control: 8 to1000-nits
  • 4 USB 2.0 ports
  •  2 USB 3.0 ports
  • 2 x 10/100/1000 LAN
  •  ≈ 6 lbs
  •  Emergency key
  • Blackout key
  •  Windows key
  • VESA 75; M6 bolts

  • Integrated speakers
  • VESA mounting pattern
  • Resolution: 1024 x 768 (High Def)
  • Aspect Ratio: 4:3
  • Operating Temperature: -30°C to 80°C
  • 11.95 x 9.9 x 2.95 inches and
    11.95 x 12.1 x 2.95 inches (with M1 docked)
  • NEMA 4X and IP65



Call 1-800-537-0509 and ask for sales for information about vehicle mounting solutions paired with the PDRT!
